Commands

Changelog

For the latest changes and release notes, see the CHANGELOG.

This page lists the commands available in PurgeTSS.

Alloy and Classic compatibility

The PurgeTSS utility-class lifecycle remains Alloy-only. Classic apps can use the independent asset and CommonJS commands without installing an alloy.jmk hook or adding PurgeTSS to their compilation flow.

Command	Alloy	Classic	Classic behavior
`brand`	✅	✅	Generates only platforms enabled in `tiapp.xml`; `--only` explicitly overrides that filter.
`images`	✅	✅	Writes to `Resources/{android,iphone}/images/` and follows `tiapp.xml` unless `--android` or `--ios` is passed.
`semantic`	✅	✅	Writes only `Resources/semantic.colors.json`; no `purgetss/`, utility mapping, or TSS is created.
`shades`	✅	✅	Console modes work anywhere. Saving creates or updates `purgetss/config.cjs`.
`color-module`	✅	✅	Writes `Resources/lib/purgetss.colors.js`; load it with `require('lib/purgetss.colors')`.
`module`	✅	✅	Writes `Resources/lib/purgetss.ui.js`; load it with `require('lib/purgetss.ui')`.
`icon-library`	✅	✅	Uses `Resources/fonts/` and optionally `Resources/lib/`; `--styles` is skipped in Classic.
`build-fonts`	✅	✅	Uses `Resources/fonts/` and optionally `Resources/lib/`; no TSS is generated.
Root `purgetss`, `--all`, `init`, `create`, `install-dependencies`, `build`, `watch`	✅	—	These commands own the Alloy/PurgeTSS utility-class lifecycle.
`update`, `sudo-update`	✅	✅	Global CLI maintenance; no project layout is required.

The files generated under Resources/ are ordinary Titanium resources. A Classic app does not need PurgeTSS installed to compile or run with them.

Loading generated modules in Classic

Titanium resolves a local CommonJS module path from the app's Resources/ directory. Omit both the Resources/ prefix and the .js extension from require(). For example, Resources/lib/purgetss.colors.js is loaded with require('lib/purgetss.colors'), not require('purgetss.colors'). See Titanium's official CommonJS module path resolution.

Generated Classic file	Use from Classic JavaScript
`Resources/lib/purgetss.colors.js`	`require('lib/purgetss.colors')`
`Resources/lib/purgetss.ui.js`	`require('lib/purgetss.ui')`
`Resources/lib/purgetss.fonts.js`	`require('lib/purgetss.fonts')`
`Resources/lib/fontawesome.js`	`require('lib/fontawesome')`
`Resources/lib/materialicons.js`	`require('lib/materialicons')`
`Resources/lib/materialsymbols.js`	`require('lib/materialsymbols')`
`Resources/lib/framework7icons.js`	`require('lib/framework7icons')`

Setup commands

init: Initializes PurgeTSS on an existing Alloy project.
create: Creates a new Alloy project with PurgeTSS already set up.
brand: Regenerates every image the Titanium template ships, from one main logo: launcher icons, adaptive icons, iOS 18+ Dark/Tinted variants, marketplace artwork, and the iOS and Android splash sets. Per-piece logo overrides and a --only filter are available when needed.
images: Generates multi-density UI images (Android res-* densities, iPhone @1x/@2x/@3x scales). Works on Alloy and Classic and follows tiapp.xml deployment targets.

Development commands

build: Generates utilities.tss from config.cjs.
watch: Runs purgetss automatically on each project compile (defaults to --on).

Asset commands

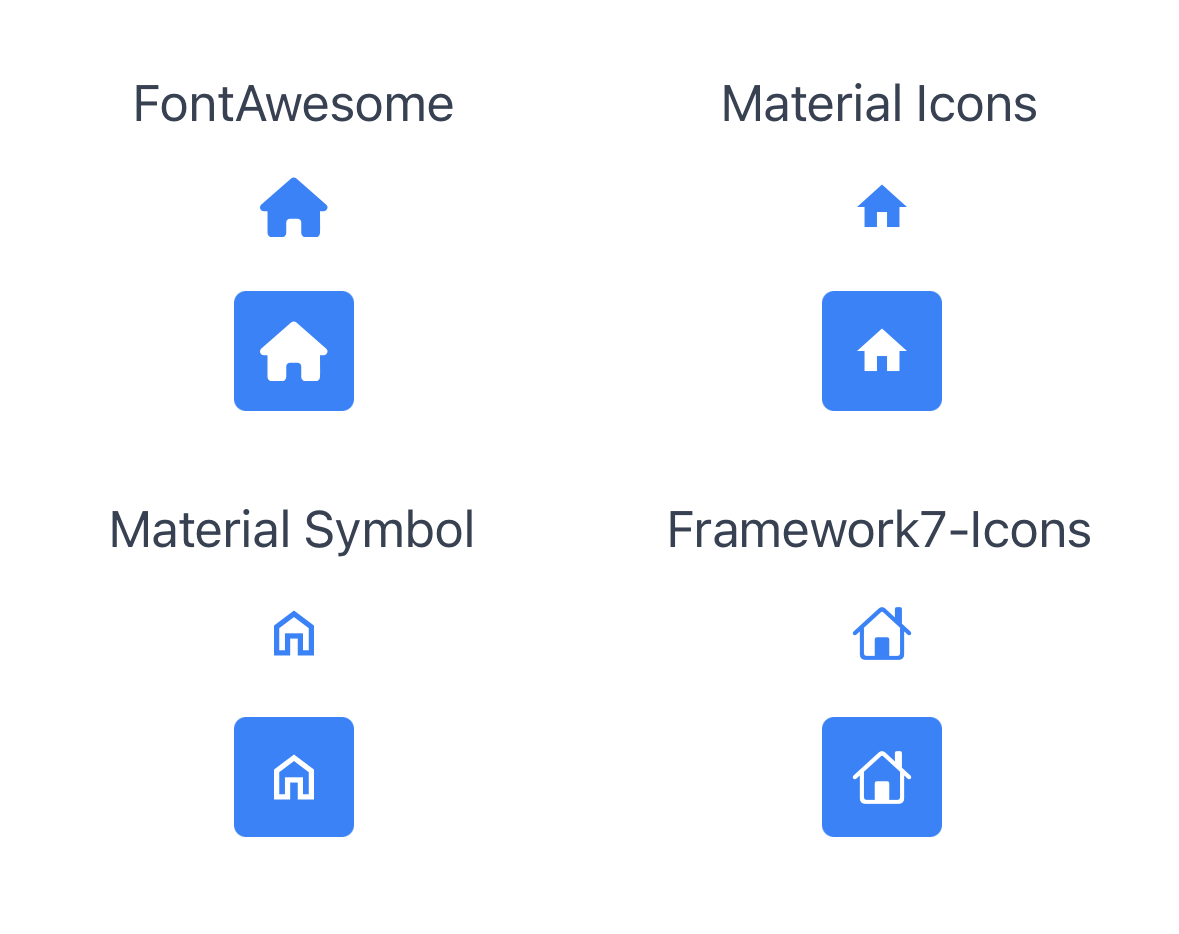

icon-library: Copies official icon fonts to app/assets/fonts/ (Alloy) or Resources/fonts/ (Classic).
build-fonts: Installs custom fonts in Alloy or Classic; TSS class definitions are generated only for Alloy.

Utility commands

shades: Generates shades and tints for a color and writes the palette to config.cjs.
semantic: Generates Titanium semantic colors into app/assets/semantic.colors.json (Alloy) or Resources/semantic.colors.json (Classic).
color-module: Creates app/lib/purgetss.colors.js in Alloy or Resources/lib/purgetss.colors.js in Classic with the colors defined in config.cjs.
module: Installs app/lib/purgetss.ui.js in Alloy or Resources/lib/purgetss.ui.js in Classic.

Maintenance commands

update: Updates PurgeTSS to the latest version.
sudo-update: Updates PurgeTSS using sudo to install npm modules if needed.

`init` command

The init command sets up PurgeTSS by creating ./purgetss/config.cjs at the root of an existing Alloy project.

No arguments or options are needed. The command creates the file inside ./purgetss/.

> purgetss init

# alias:
> purgetss i

./purgetss/config.cjs
module.exports = {
  purge: {
    mode: 'all',
    method: 'sync', // How to execute the auto-purging task: sync or async

    // These options are passed directly to PurgeTSS
    options: {
      missing: true, // Reports missing classes
      widgets: false, // Purges widgets too
      safelist: [], // Array of classes to keep
      plugins: [] // Array of properties to ignore
    }
  },
  brand: {
    background: '#FFFFFF',      // inherited by pieces that use an opaque background canvas
    artworkCornerRadius: '0%',  // rounded non-icon artwork: splashes, Feature Graphic and LaunchLogo (0-50)
    confirmOverwrites: true,    // prompt before overwriting files (set false to skip)
    optimize: false,            // true = quantize the generated PNGs to a palette (lossy, ~71% smaller)

    // One block per piece. Artwork comes from purgetss/brand/logo-<piece>.{svg,png};
    // these keys are for numbers, colors and activation. Padding is never inherited.
    // iosSplash, androidSplash, featureGraphic and launchLogo accept cornerRadius.
    // Store and launcher icons stay square for platform masking.
    // iOS/store icons are full-bleed by default; increase padding only for logo artwork.
    icon:             { padding: '0%' },    // DefaultIcon.png + DefaultIcon-ios.png
    dark:             { background: null }, // DefaultIcon-Dark.png
    tinted:           {},                   // DefaultIcon-Tinted.png
    iosSplash:        { padding: '26%' },   // assets/iphone/Default*.png × 16
    launchLogo:       { padding: '12%' },   // LaunchLogo.png (1024×1024)
    marketplace:      {},                   // iTunesConnect.png + MarketplaceArtwork.png
    featureGraphic:   { padding: '12%' },   // MarketplaceArtworkFeature.png (1024×500)
    adaptive:         { padding: '18%' },   // ic_launcher_{foreground,background,monochrome}.png × 5 + ic_launcher.xml
    legacyIcon:       { padding: '10%' },   // ic_launcher.png × 5
    appicon:          { padding: '10%' },   // appicon.png (128×128)
    androidSplash:    { padding: '26%' },   // assets/android/default.png + images/res-*/default.png × 11

    // Opt-in: inert until you edit the Android theme / FCM meta-data by hand.
    splashIcon:       { enabled: false },   // drawable-*/splash_icon.png × 5
    notificationIcon: { enabled: false },   // drawable-*/ic_stat_notify.png × 5
    ninePatch:        { enabled: false }    // background.9.png (not implemented yet)
  },
  images: {
    quality: 85,             // JPEG/WebP/AVIF quality (0-100)
    format: null,            // null = keep original; 'webp' | 'jpeg' | 'png' to convert every image
    autoSync: true,          // false = SVG pipeline computes dims but doesn't write to images.files
    confirmOverwrites: true, // prompt before overwriting files (set false to skip)
    files: []                // per-file overrides: [{ filename: 'images/<sub>/<name>.<ext>', width, height? }]
  },
  theme: {
    extend: {}
  }
};

init also creates empty purgetss/fonts/, purgetss/brand/, and purgetss/images/ folders so you can see where each kind of asset goes.

To learn more

PurgeTSS looks for ./purgetss/config.cjs. Each section is optional and can be customized. Missing sections use the default configuration.

For examples, see the Configuration section.

`create` command

The create command generates a new Alloy project with PurgeTSS already set up.

Arguments

Enclose the project name in single or double quotes. Required.

Options

Use -f, --force to overwrite an existing project.
Use -d, --dependencies to install ESLint and Tailwind CSS.
Use -v, --vendor [fa,mi,ms,f7] to copy the selected fonts into your project and add the CommonJS module in ./app/lib/. See the icon-library command for available fonts.

If a project with the same name already exists, the command will prompt you to confirm whether you want to overwrite it.

> purgetss create 'Name of the Project' [--vendor="fontawesome, materialicons, materialsymbols, framework7"]

# alias:
> purgetss c 'Name of the Project' [-v=fa,mi,ms,f7]

Requirements

Make sure app.idprefix and app.workspace are configured in Titanium's config.json.

# A name in reverse domain name format.
app.idprefix = "com.yourdomain"

# Path to use as the workspace directory for new projects.
app.workspace = "/<full-path-to>/<workspace>/<folder>"
# ...

Use ti config to set up both settings:

ti config app.idprefix 'com.yourdomain'
ti config app.workspace 'the-full-path/to-the-workspace-folder'

Installing dev dependencies

Adds linting and editor support to an existing project.

> purgetss create 'Name of the Project' [--dependencies]

# alias:
> purgetss c 'Name of the Project' [-d]

This option installs ESLint, Tailwind CSS, and setup files for Visual Studio Code (VSCode).

Recommended VSCode extensions:

XML Tools: XML formatting.
ESLint: Linting and coding standards.
Tailwind CSS IntelliSense: PurgeTSS class support.
Tailwind Raw Reorder (v4): Class sorting for XML and JS files.
Intellisense for CSS class names in HTML: Class completion based on your purgetss/config.cjs, including fonts.tss and utilities.tss.

List of commands used

Running purgetss create "Name of the Project" [--dependencies --vendor=fa,mi,ms,f7] executes:

ti config app.idprefix && ti config app.workspace - retrieves the related values.
ti create -t app -p all -n "Name of the Project" --no-prompt --id "the-prefix-id-and-the-name-of-the-project" - creates the app project and id.
cd app.workspace/"Name of the Project" - changes to the new folder.
alloy new - converts it to an Alloy project.
purgetss w - runs PurgeTSS on compile.
purgetss b - builds ./purgetss/styles/utilities.tss.
[--vendor=fa,mi,ms,f7] - copies the selected fonts and the CommonJS module into ./app/lib/.
[--dependencies] - installs:
- npm i -D tailwindcss && npx tailwindcss init - Tailwind CSS.
- npm i -D eslint eslint-config-axway eslint-plugin-alloy - ESLint and Titanium plugins.
- .editorconfig, eslint.config.js, tailwind.config.js, .vscode/extensions.json, .vscode/settings.json - config files.
code ., subl ., or open . - opens the project in VS Code, Sublime Text, or Finder.

`brand` command

Regenerates the complete branding set for the platforms enabled in tiapp.xml: launcher icons, adaptive icons, iOS 18+ Dark/Tinted variants, marketplace artwork, and both splash sets. Alloy and Classic layouts are detected automatically. A normal run follows <deployment-targets>; an explicit --only is an override that can prepare a disabled platform ahead of time.

Full guide

This is a quick reference. See App icons and branding for the full guide: workflow, padding guidance, Android dark mode, iOS 18+ variants, and troubleshooting. It also includes the full brand: config reference.

> purgetss brand                                         # uses purgetss/brand/logo.svg + config
> purgetss brand sample-icon.png                         # adopts it as purgetss/brand/logo.png when missing

The pieces

Piece	Config key	Generates	On by default
`icon`	`icon`	`DefaultIcon.png` + `DefaultIcon-ios.png`	yes
`dark`	`dark`	`DefaultIcon-Dark.png`	yes
`tinted`	`tinted`	`DefaultIcon-Tinted.png`	yes
`ios-splash`	`iosSplash`	`assets/iphone/Default*.png` × 16	yes
`launch-logo`	`launchLogo`	`LaunchLogo.png` (1024×1024)	when `logo-launch.*` exists
`marketplace`	`marketplace`	`iTunesConnect.png` + `MarketplaceArtwork.png`	yes
`feature-graphic`	`featureGraphic`	`MarketplaceArtworkFeature.png` (1024×500)	yes
`adaptive`	`adaptive`	`ic_launcher_{foreground,background,monochrome}.png` × 5 + `ic_launcher.xml`	yes
`legacy-icon`	`legacyIcon`	`ic_launcher.png` × 5	yes
`appicon`	`appicon`	`appicon.png` (128×128)	yes
`android-splash`	`androidSplash`	`assets/android/default.png` + `images/res-*/default.png` × 11	yes
`splash-icon`	`splashIcon`	`drawable-*/splash_icon.png` × 5	`--splash-icon`
`notification-icon`	`notificationIcon`	`drawable-*/ic_stat_notify.png` × 5	`--notification-icon`
`nine-patch`	`ninePatch`	`background.9.png` (not implemented yet)	`--nine-patch`

Groups for --only: ios (icon, dark, tinted, ios-splash), store (marketplace, feature-graphic), android (adaptive, legacy-icon, appicon, android-splash).

Using custom logo paths

By default, PurgeTSS auto-discovers logos from purgetss/brand/: logo.{svg,png} for the main artwork, logo-<piece>.{svg,png} for a specific piece. To use custom paths, set logo on the piece in config.cjs:

./purgetss/config.cjs
module.exports = {
  brand: {
    background: '#FFFFFF',      // inherited by pieces that use an opaque background canvas
    artworkCornerRadius: '0%',  // rounded non-icon artwork: splashes, Feature Graphic and LaunchLogo (0-50)
    confirmOverwrites: true,    // prompt before overwriting files (set false to skip)
    optimize: false,            // true = quantize the generated PNGs to a palette (lossy, ~71% smaller)

    // One block per piece. Artwork comes from purgetss/brand/logo-<piece>.{svg,png};
    // these keys are for numbers, colors and activation. Padding is never inherited.
    // iosSplash, androidSplash, featureGraphic and launchLogo accept cornerRadius.
    // Store and launcher icons stay square for platform masking.
    // iOS/store icons are full-bleed by default; increase padding only for logo artwork.
    icon:             { padding: '0%' },    // DefaultIcon.png + DefaultIcon-ios.png
    dark:             { background: null }, // DefaultIcon-Dark.png
    tinted:           {},                   // DefaultIcon-Tinted.png
    iosSplash:        { padding: '26%' },   // assets/iphone/Default*.png × 16
    launchLogo:       { padding: '12%' },   // LaunchLogo.png (1024×1024)
    marketplace:      {},                   // iTunesConnect.png + MarketplaceArtwork.png
    featureGraphic:   { padding: '12%' },   // MarketplaceArtworkFeature.png (1024×500)
    adaptive:         { padding: '18%' },   // ic_launcher_{foreground,background,monochrome}.png × 5 + ic_launcher.xml
    legacyIcon:       { padding: '10%' },   // ic_launcher.png × 5
    appicon:          { padding: '10%' },   // appicon.png (128×128)
    androidSplash:    { padding: '26%' },   // assets/android/default.png + images/res-*/default.png × 11

    // Opt-in: inert until you edit the Android theme / FCM meta-data by hand.
    splashIcon:       { enabled: false },   // drawable-*/splash_icon.png × 5
    notificationIcon: { enabled: false },   // drawable-*/ic_stat_notify.png × 5
    ninePatch:        { enabled: false }    // background.9.png (not implemented yet)
  }
}

Options

Project and output

--project <path>: project root (defaults to cwd).
--dry-run: preview what would be generated without writing any files.
--output <dir>: stage into <dir> instead of writing in place.
-y, --yes: skip the overwrite confirmation prompt for this invocation.

Selecting what to generate

--only <pieces>: comma-separated pieces or groups. Generates a named piece even when its opt-in flag is absent; an unknown name aborts before writing anything.

Visual customization

--bg-color <hex>: opaque fallback inherited by every piece that doesn't set its own. White is configurable, not required by either platform.
--padding <n>: shortcut that sets both Android launcher paddings to the same value for one run.
--android-adaptive-padding <n>: adaptive icon safe-zone % (default 18).
--android-legacy-padding <n>: legacy ic_launcher.png padding % (default 10).
--appicon-padding <n>: appicon.png padding % (default 10).
--ios-padding <n>: inset % for the four square iOS/store pieces (default 0, full-bleed). Raise it when the source is a logo that needs breathing room.
--feature-graphic-padding <n>: vertical padding % for MarketplaceArtworkFeature.png (default 12, range 0-40).
--launch-logo-padding <n>: padding % for LaunchLogo.png (default 12).
--splash-padding <n>: shortcut that sets both splash paddings to the same value for one run.
--android-splash-padding <n>: padding % for default.png and the 11 res-* splashes (default 26).
--ios-splash-padding <n>: padding % for the 16 iPhone launch images (default 26).
--artwork-corner-radius <n>: shared radius for legacy splash artwork, Feature Graphic, and LaunchLogo (default 0, range 0-50).
--splash-corner-radius <n>: shortcut that sets both legacy splash artwork corner radii (default 0, range 0-50).
--ios-splash-corner-radius <n>: corner radius % for artwork in the 16 iPhone launch images.
--android-splash-corner-radius <n>: corner radius % for artwork in Android default.png and its 11 qualifier variants.
--feature-graphic-corner-radius <n>: corner radius % for artwork inside MarketplaceArtworkFeature.png.
--launch-logo-corner-radius <n>: corner radius % for artwork inside LaunchLogo.png.

Splash padding is a share of the canvas's shorter side, so one number keeps the logo at the same visual weight in portrait and in landscape: the 26% default leaves it at 48% of the shorter side.

Corner radius is measured against the shorter side of the already-resized artwork. It rounds only non-icon artwork: legacy splash canvases, Feature Graphic, and LaunchLogo. DefaultIcon*, iTunesConnect.png, MarketplaceArtwork.png, adaptive/legacy/app icons, and Android 12+ splash_icon.png remain unmasked. A piece-specific flag wins over the shared splash shortcut (for splashes), then --artwork-corner-radius, piece config, brand.splashCornerRadius (for splashes), brand.artworkCornerRadius, and finally 0%.

Optional asset types

--notification-icon: also emit ic_stat_notify.png × 5.
--splash-icon: also emit splash_icon.png × 5.
--nine-patch: declared but not implemented yet; prints a warning and writes nothing.

Logo variants and overrides

Every piece has a --<piece>-logo flag, each overriding the matching purgetss/brand/logo-<piece>.{svg,png}:

--icon-logo <path>: DefaultIcon.png / DefaultIcon-ios.png.
--dark-logo <path>: iOS 18+ dark variant.
--tinted-logo <path>: iOS 18+ tinted variant.
--ios-splash-logo <path>: the 16 iPhone launch images.
--launch-logo <path>: source for LaunchLogo.png; passing it also activates the piece.
--marketplace-logo <path>: iTunesConnect.png / MarketplaceArtwork.png.
--feature-graphic-logo <path>: the Google Play Feature Graphic (1024×500).
--adaptive-logo <path>: Android adaptive launcher icons.
--legacy-icon-logo <path>: legacy ic_launcher.png.
--appicon-logo <path>: appicon.png.
--android-splash-logo <path>: Android <12 splash artwork.
--splash-icon-logo <path>: Android 12+ splash_icon.png.
--notification-icon-logo <path>: ic_stat_notify.png.

Two more sources are not pieces:

--monochrome-logo <path>: the silhouette shared by the adaptive monochrome layer and the notification icons (purgetss/brand/logo-mono.{svg,png}).
the positional <logo> argument: the main logo, source for every piece that has no override.

Output size:

--optimize: re-encode every generated PNG with a quantized palette. Lossy, ~71% smaller on a full brand set. Also settable as brand.optimize in config.cjs.
--no-optimize: skip that pass even when brand.optimize is true.

Appearance:

--dark-bg-color <hex>: opaque dark bg for DefaultIcon-Dark.png (default: transparent per Apple HIG).
--no-dark: skip DefaultIcon-Dark.png.
--no-tinted: skip DefaultIcon-Tinted.png.

Breaking changes in v7.13.0

--splash → --splash-icon, --notification → --notification-icon, --splash-logo → --splash-icon-logo, --feature-logo → --feature-graphic-logo. --icon-logo now feeds the icon piece; the Android launcher source is --adaptive-logo. --legacy-splash is gone: the per-qualifier Android splashes are part of android-splash and always generated. No flag aliases were kept. The brand: config block also changed shape, but that one updates itself. See Older configs update themselves.

Legacy cleanup

--cleanup-legacy: remove obsolete branding artifacts (reads tiapp.xml for safety rules).
--aggressive: with --cleanup-legacy, also remove ldpi density folders.

Diagnostics

--notes: print the complete platform launch/theme setup + padding tuning guide.
--debug: print extra diagnostics.

Confirmation prompt

brand writes in place, so it asks Continue? [y/N/a] before overwriting anything. Pick a (always) to write confirmOverwrites: false into the brand: section of config.cjs and silence the prompt on future runs. The prompt is skipped automatically when stdin is not a TTY (alloy.jmk hook, CI, pipes), when you pass -y / --yes, or when PURGETSS_YES=1 is set.

Examples

> purgetss brand                                          # uses purgetss/brand/logo.svg + config
> purgetss brand --only icon                              # just the DefaultIcon pair
> purgetss brand --only ios,notification-icon             # a group plus one opt-in piece
> purgetss brand --bg-color "#0B1326"                     # override bg color
> purgetss brand --adaptive-logo ./docs/app-icon.svg      # dedicated square Android launcher mark
> purgetss brand --splash-icon --splash-icon-logo ./docs/splash.svg  # custom Android 12+ splash artwork
> purgetss brand --launch-logo ./docs/wordmark.svg        # iOS launch screen logotype
> purgetss brand --feature-graphic-logo ./docs/feature.svg # custom Google Play Feature Graphic logo
> purgetss brand --feature-graphic-padding 8              # tighter Feature Graphic padding (more impact)
> purgetss brand --artwork-corner-radius 22               # round all non-icon artwork
> purgetss brand --splash-corner-radius 18                # override just the two legacy splash sets
> purgetss brand --appicon-padding 14                     # temporary appicon.png inset
> purgetss brand --notification-icon --splash-icon        # add notification + splash icons
> purgetss brand --no-tinted                              # skip iOS 18+ tinted variant
> purgetss brand --dry-run                                # preview without writing
> purgetss brand --cleanup-legacy --dry-run               # preview legacy cleanup

brand writes four Android-facing asset groups with different jobs:

ic_launcher* for the app icon and the default Android 12+ system splash path
appicon.png as Titanium's fallback for tiapp.xml's <icon> when the manifest declares no android:icon
default.png + images/res-*/default.png for the Android <12 splash
splash_icon.png when you pass --splash-icon and want custom Android 12+ splash artwork

The recommended workflow is convention-first:

put your files in purgetss/brand/
let auto-discovery pick them up
use config.cjs only when you need a persistent override
use CLI flags only for one-off runs

Flags cover artwork sources, visual geometry, the shared background, temporary selection or activation, and optimization. Configuration also owns preferences that should persist without a flag: confirmOverwrites, permanent enabled values, and exceptional backgrounds for individual pieces.

brand.background is baked into the generated assets, but PurgeTSS does not automatically edit the iOS LaunchScreen or Android configuration. Run purgetss brand --notes to print the iOS snippet plus a complete launcher-only Android theme and Activity override with the current color. The Android snippet points its three launch-related theme attributes to one splashscreen_background resource, so the launch color is changed in a single line. See Matching the launch background for the full setup and merge rules.

`images` command

Generates multi-density variants of your UI images from one high-resolution source per image. That includes buttons, illustrations, logos, and screen graphics. Alloy and Classic projects are detected automatically.

Without a platform flag, images reads <deployment-targets> from tiapp.xml and skips disabled platforms. Passing --android or --ios is an explicit override. Output paths are:

Alloy: app/assets/{android,iphone}/images/
Classic: Resources/{android,iphone}/images/

Running images with no positional source uses the purgetss/images/ convention and creates that folder when missing. Passing an existing external file or directory is self-contained: the command does not create an empty purgetss/images/ or a config file merely to process it.

Full guide

This is a quick reference. See Multi-density images for the full guide: 4× source convention, single-file regeneration, format conversion, and troubleshooting.

For SVGs referenced from views or controllers, see SVG-aware compile-time pipeline. It runs with every purgetss command and rasterizes only the SVGs your views use.

> purgetss images                                        # uses purgetss/images/ + config

Options

Source selection

[source] (positional): optional path to override auto-discovery. Resolves first against purgetss/images/ (short paths like buttons/btn.png), then against cwd.

Platform filter

--android: explicitly generate only Android density variants, even when Android is disabled in tiapp.xml. Mutually exclusive with --ios.
--ios: explicitly generate only iPhone scale variants, even when iOS is disabled in tiapp.xml. Mutually exclusive with --android.

Output format

--format <ext>: convert all outputs to webp, jpeg, png, avif, gif, or tiff. Default: keep source format.
--quality <n>: quality 0-100 for lossy formats. Default 85.

Sizing

--width <n>: pin Android mdpi (= iPhone @1x) to <n> pixels wide. Larger scales derive as ×1.5, ×2, ×3, ×4 from that base; height stays proportional to the source's aspect ratio. Accepts integers in [1, 8192]. Use it for SVG sources from vector editors with disproportionate viewBoxes, such as Affinity or Illustrator. Without it, every scale derives from the source's natural pixel size as a 4× master, which can produce unexpected output when the viewBox does not match the intended display size.

Transformations

--opacity <n>: multiply the alpha channel of every generated density by n/100. Integer in [0, 100]. Useful for placeholder or default ImageView images that render at reduced opacity (loading states, watermarks). Applied so each density inherits the same proportional transparency.
--padding <n>: shrink the rendered image inside each density canvas by n% symmetric borders. Integer in [0, 40]. The output canvas keeps the size it would have without padding; what changes is the rendered logo inside it, with transparent borders filling the rest. Combines with --opacity for placeholders that need reduced opacity AND breathing room around an unpadded source logo.
--output <relpath>: override basename + subfolder relative to the images output root. The full multi-density pattern is preserved. Only the basename and subpath change. Constraints: no extension (decided by --format or source ext), no absolute paths, no .. segments, single-file source only.

Project and output

--dry-run: preview without writing any files.
--project <path>: project root (defaults to cwd).
-y, --yes: skip the overwrite confirmation prompt for this invocation.

Diagnostics

--debug: print extra diagnostics.

Examples

> purgetss images                                        # uses purgetss/images/ + config
> purgetss images background/pink-texture.png            # re-process one file (short path)
> purgetss images background/                            # re-process one subfolder
> purgetss images --android                              # only Android densities
> purgetss images --format webp --quality 90             # convert all outputs to WebP
> purgetss images logo.svg --width 256                   # pin SVG output to 256 px @1x/mdpi
> purgetss images logo.svg --opacity 50 --format png     # semi-transparent placeholder, all densities
> purgetss images purgetss/brand/logo.svg --opacity 30 --output 'logos/loading' --format png
> purgetss images purgetss/brand/logo.png --opacity 30 --padding 15 --output 'logos/default' --format png
> purgetss images --dry-run                              # preview

Confirmation prompt

Like brand, images writes in place and asks Continue? [y/N/a] before overwriting anything. a (always) writes confirmOverwrites: false into the images: section of config.cjs. Skipped automatically when stdin is not a TTY, when you pass -y / --yes, or when PURGETSS_YES=1 is set.

`install-dependencies` command

This command installs dev dependencies and configuration files in an existing PurgeTSS project. It also sets up Visual Studio Code (VSCode) support.

This is an Alloy-only command because Tailwind IntelliSense, the Alloy ESLint plugin, and the generated editor configuration support the PurgeTSS utility-class workflow. It is intentionally not installed into Classic projects.

> purgetss install-dependencies

# alias:
> purgetss id

Important

This command overwrites any existing extensions.json and settings.json files. Back them up if you want to keep your current versions.

`icon-library` command

The icon-library command copies the free font files for Font Awesome, Material Icons, Material Symbols, and Framework7 Icons into the native font folder for the detected project:

Alloy: app/assets/fonts/
Classic: Resources/fonts/

> purgetss icon-library [--vendor=fa,mi,ms,f7] [--module] [--styles]

# alias:
> purgetss il [-v=fa,mi,ms,f7] [-m] [-s]

Options and flags

-v, --vendor [fa,mi,ms,f7]: copy specific font vendors.
-m, --module: copy the corresponding CommonJS module into app/lib/ (Alloy) or Resources/lib/ (Classic).
-s, --styles: copy the corresponding TSS files into ./purgetss/styles/ for review. This option is Alloy-only and is skipped in Classic without creating TSS files.

app/assets/fonts/ or Resources/fonts/
FontAwesome7Brands-Regular.ttf
FontAwesome7Free-Regular.ttf
FontAwesome7Free-Solid.ttf
Framework7-Icons.ttf
MaterialIcons-Regular.ttf
MaterialIconsOutlined-Regular.otf
MaterialIconsRound-Regular.otf
MaterialIconsSharp-Regular.otf
MaterialIconsTwoTone-Regular.otf
MaterialSymbolsOutlined-Regular.ttf
MaterialSymbolsRounded-Regular.ttf
MaterialSymbolsSharp-Regular.ttf

In Alloy, the bundled PurgeTSS classes can use the fonts immediately. In Classic, the same files are available as normal Titanium custom fonts: set font.fontFamily and use the Unicode value directly or install the CommonJS lookup module with --module.

Alloy users do not need to copy any .tss file: PurgeTSS resolves the official icon classes at compile time and writes them to generated app/styles/app.tss. Classic does not use those classes; use the font family plus a Unicode value or the optional CommonJS module. See Icon font libraries for the full reference.

Available font classes

Copying specific font vendors

To copy specific font vendors, use any of the following arguments:

> purgetss icon-library --vendor="fontawesome, materialicons, materialsymbols, framework7"

# alias:
> purgetss il -v=fa,mi,ms,f7

Available names and aliases:

fa, fontawesome = Font Awesome Icons
mi, materialicons = Material Icons
ms, materialsymbol = Material Symbols
f7, framework7 = Framework7 Icons

CommonJS module

Use --module to copy the corresponding CommonJS module into app/lib/ (Alloy) or Resources/lib/ (Classic).

> purgetss icon-library --module [--vendor="fontawesome, materialicons, materialsymbols, framework7"]

# alias:
> purgetss il -m [-v=fa,mi,ms,f7]

Each library includes a CommonJS module that exposes Unicode strings and the matching Titanium font-family aliases. For example, a Classic app can load Resources/lib/fontawesome.js with require('lib/fontawesome'), then use fontAwesome.icons.home with fontAwesome.solid instead of repeating FontAwesome7Free-Solid.

The other Classic module paths follow the same rule: require('lib/materialicons'), require('lib/materialsymbols'), and require('lib/framework7icons').

All modules expose families.default. Variant aliases are:

Module	Aliases
`fontawesome`	`solid`, `regular`, `brands`
`materialicons`	`regular`, `outlined`, `round`, `sharp`, `twoTone`
`materialsymbols`	`outlined`, `rounded`, `sharp`
`framework7icons`	`fontFamily`

All prefixes are stripped from their class names and camel-cased. For example:

Font Awesome: fa-flag becomes flag.
Material Icons: mi-flag becomes flag.
Material Symbols: ms-flag becomes flag.
Framework7 Icons: f7-alarm_fill becomes alarmFill and f7-clock_fill becomes clockFill.

`build-fonts` command

The build-fonts command reads font files placed in ./purgetss/fonts/. Use it for brand typography, custom icon fonts, or any community icon library not bundled with PurgeTSS.

Alloy: copies fonts to app/assets/fonts/ and generates purgetss/styles/fonts.tss plus the class definitions file.
Classic: copies fonts to Resources/fonts/ and does not generate TSS or definitions. The purgetss/fonts/ folder is only a development-time source; the app does not depend on PurgeTSS at runtime.

> purgetss build-fonts [--module] [--font-class-from-filename]

# alias:
> purgetss bf [-m] [-f]

Options and flags

-m, --module: generate purgetss.fonts.js in app/lib/ (Alloy) or Resources/lib/ (Classic). Its families object maps every processed TTF/OTF to the exact PostScript name Titanium expects; icon CSS additionally populates icons.
-f, --font-class-from-filename: use the font's filename as the font class name and icon prefix instead of the font family name (replaces the old -p flag).

In Classic, load the generated module from Resources/app.js or another JavaScript file with:

Resources/app.js
const customFonts = require('lib/purgetss.fonts')

const title = Ti.UI.createLabel({
  text: 'Custom typography',
  font: { fontFamily: customFonts.families.poppinsSemiBold }
})

For the full workflow with examples (Google Fonts, custom icon libraries, --module output, filename-based prefixes), see Custom fonts.

`shades` command

The shades command generates shades and tints for a given color and writes the palette to config.cjs.

Saving works in Alloy and Classic. In Classic, config.cjs is a development-time color source for commands such as color-module; it does not install the PurgeTSS build lifecycle or create empty purgetss/brand/, purgetss/fonts/, or purgetss/images/ folders. The output-only flags (--log, --json, and --tailwind) work outside a project and write nothing.

Your config.cjs keeps its comments

shades and semantic rewrite only the theme: section of config.cjs; every other byte of the file, comments included, is left exactly as you wrote it. Before v7.13.0 both commands serialized the whole config object and wrote it back, which reformatted the file and dropped every comment in it, purge:, brand: and images: included.

Comments inside theme: are still replaced, since that is the section being rewritten.

> purgetss shades [hexcode] [name]

# alias:
> purgetss s [hexcode] [name]

Arguments

[hexcode]: the base hexcode value. Omit this to create a random color.
[name]: the color name. Omit this and PurgeTSS chooses a name based on the color's hue.

Options

-n, --name: Specifies the name of the color.
-q, --quotes: Retains double quotes in the config.cjs file.
-r, --random: Generates shades from a random color.
-s, --single: Generates a single color definition.
-t, --tailwind: Logs the generated shades with a tailwind.config.js compatible structure.
-l, --log: Logs the generated shades instead of saving them.
-j, --json: Logs a JSON compatible structure, which can be used in ./app/config.json, for example.

Need Titanium semantic colors (Light/Dark mode)?

Use the dedicated semantic command. It writes to app/assets/semantic.colors.json in Alloy or Resources/semantic.colors.json in Classic and generates either an 11-step tonal palette with mirror inversion or a single purpose-based color with explicit per-mode hex and optional alpha.

info

More than 66% of utilities.tss classes are tied to color properties, so shades is a practical way to extend a palette.

Basic usage:

> purgetss shades 53606b Primary

# alias:
> purgetss s 53606b Primary

::PurgeTSS:: "Primary" (#53606b) saved in config.cjs

The shades are added to config.cjs. The next time purgetss runs, utilities.tss picks them up.

./purgetss/config.cjs
module.exports = {
  // ...
  theme: {
    extend: {
      colors: {
        primary: {
          '50': '#f4f6f7',
          '100': '#e3e7ea',
          '200': '#cad2d7',
          '300': '#a6b3ba',
          '400': '#7a8b96',
          '500': '#5f707b',
          '600': '#53606b',
          '700': '#464f58',
          '800': '#3e444c',
          '900': '#373c42',
          default: '#53606b'
        }
      }
    }
  },
  // ...
}

Use --log to print the result to the console instead of saving it to config.cjs.

> purgetss shades 53606b Primary --log

# alias:
> purgetss s 53606b Primary -l

::PurgeTSS:: "Primary" (#53606b)
{
  colors: {
    primary: {
      '50': '#f4f6f7',
      '100': '#e3e7ea',
      '200': '#cad2d7',
      '300': '#a6b3ba',
      '400': '#7a8b96',
      '500': '#5f707b',
      '600': '#53606b',
      '700': '#464f58',
      '800': '#3e444c',
      '900': '#373c42',
      default: '#53606b'
    }
  }
}

Use --tailwind to print the generated shades in a tailwind.config.js-compatible structure.

> purgetss shades 000f3d --tailwind

# alias:
> purgetss s 000f3d -t

::PurgeTSS:: "Stratos" (#000f3d)
{
  colors: {
    stratos: {
      '50': '#e5f4ff',
      '100': '#cfecff',
      '200': '#a9d8ff',
      '300': '#75bbff',
      '400': '#3f8cff',
      '500': '#145dff',
      '600': '#0047ff',
      '700': '#0048ff',
      '800': '#0040e3',
      '900': '#000f3d'
    }
  }
}

To generate a random color value, use --random. Here it is paired with --log:

> purgetss shades -rl

::PurgeTSS:: "Harlequin" (#44ed20)
{
  colors: {
    harlequin: {
      '50': '#ecffe6',
      '100': '#d5fec9',
      '200': '#adfd99',
      '300': '#7bf85e',
      '400': '#44ed20',
      '500': '#2ed40e',
      '600': '#1daa06',
      '700': '#19810a',
      '800': '#18660e',
      '900': '#175611',
      default: '#44ed20'
    }
  }
}

To print a Titanium config.json-compatible structure to the console, use --json:

> purgetss shades '#65e92c' -j

# alias:
> purgetss s '#65e92c' -j

::PurgeTSS:: "Lima" (#65e92c)
{
  global: {
    colors: {
      lima: #65e92c,
      lima-50: #f0fee7,
      lima-100: #dcfdca,
      lima-200: #bbfb9b,
      lima-300: #90f561,
      lima-400: #65e92c,
      lima-500: #48d012,
      lima-600: #34a60a,
      lima-700: #297e0d,
      lima-800: #246410,
      lima-900: #215413
    }
  }
}

info

shades was the first command that wrote to config.cjs. Please report any issues you run into.

`semantic` command

The semantic command generates Titanium semantic colors, with Light/Dark mode support built in. Use --single to switch modes.

Alloy: writes app/assets/semantic.colors.json and updates the PurgeTSS utility mapping in purgetss/config.cjs.
Classic: writes only Resources/semantic.colors.json. It does not create purgetss/, config.cjs, utility mappings, or TSS files.

> purgetss semantic [hexcode] [name]

Palette mode (no `--single`)

One base hex becomes an 11-shade tonal palette with mirror-by-index Light/Dark inversion anchored at shade 500. Alloy writes the JSON entries and the matching config.cjs mapping. Classic writes only the native JSON entries.

> purgetss semantic '#15803d' amazon

::PurgeTSS:: "amazon" palette (11 shades) saved to app/assets/semantic.colors.json

Result:

./app/assets/semantic.colors.json
{
  "amazon50":  { "light": "#052e14", "dark": "#f0fdf5" },
  "amazon500": { "light": "#22c55f", "dark": "#22c55f" },
  "amazon950": { "light": "#f0fdf5", "dark": "#052e14" }
}

./purgetss/config.cjs
theme: {
  extend: {
    colors: {
      amazon: {
        '50':  'amazon50',
        '500': 'amazon500',
        '950': 'amazon950'
      }
    }
  }
}

In Alloy, classes like bg-amazon-50, text-amazon-500, and border-amazon-950 flip tonal contrast automatically with the system appearance. Classic code references the semantic keys directly, for example backgroundColor: 'amazon50'.

Single mode (`--single`)

This mode uses explicit per-mode hex values for purpose-based semantic colors such as surfaceColor, textColor, borderColor, or overlayColor. Alloy also maps the key to a class in config.cjs by stripping the conventional Color suffix. Classic writes the native JSON entry only.

> purgetss semantic --single '#F9FAFB' surfaceColor       --dark '#0f172a'
> purgetss semantic --single '#FFFFFF' surfaceHighColor   --dark '#1e293b'
> purgetss semantic --single '#111827' textColor          --dark '#f1f5f9'
> purgetss semantic --single '#3B82F6' accentColor        --dark '#60a5fa' --alpha 80
> purgetss semantic --single '#000000' overlayColor       --alpha 50

The name is preserved verbatim as the JSON key, including camelCase. When --dark is omitted, it defaults to the light hex. That is useful for overlays or glass surfaces where alpha is the only variation. An Alloy run logs the mapping it wrote:

::PurgeTSS:: "surfaceColor" saved to app/assets/semantic.colors.json and mapped to class surface in config.cjs.
::PurgeTSS:: "surfaceHighColor" saved to app/assets/semantic.colors.json and mapped to class surface-high in config.cjs.

After the batch above:

./app/assets/semantic.colors.json
{
  "surfaceColor":     { "light": "#F9FAFB", "dark": "#0f172a" },
  "surfaceHighColor": { "light": "#FFFFFF", "dark": "#1e293b" },
  "textColor":        { "light": "#111827", "dark": "#f1f5f9" },
  "accentColor":      { "light": { "color": "#3B82F6", "alpha": "80" },
                        "dark":  { "color": "#60a5fa", "alpha": "80" } },
  "overlayColor":     { "light": { "color": "#000000", "alpha": "50" },
                        "dark":  { "color": "#000000", "alpha": "50" } }
}

./purgetss/config.cjs
theme: {
  extend: {
    colors: {
      surface:         'surfaceColor',
      'surface-high':  'surfaceHighColor',
      text:            'textColor',
      accent:          'accentColor',
      overlay:         'overlayColor'
    }
  }
}

Alloy can use the generated classes immediately: bg-surface, bg-surface-high, text-text, bg-accent, bg-overlay. Classic uses surfaceColor, surfaceHighColor, textColor, accentColor, and overlayColor directly in Titanium color properties.

Customizing the class name

The auto-mapping uses the most literal Titanium-style transform: strip Color, then kebab-case the rest. If your design system prefers different names, for example on-surface instead of text, or nesting the surface family, edit config.cjs after running the command:

./purgetss/config.cjs
theme: {
  extend: {
    colors: {
      surface:         { DEFAULT: 'surfaceColor', high: 'surfaceHighColor' },
      'on-surface':    'textColor',
      'on-surface-variant': 'textSecondaryColor',
      muted:           'textMutedColor',
      border:          'borderColor',
      accent:          'accentColor',
      overlay:         'overlayColor'
    }
  }
}

The next purgetss build will pick up the renamed classes. Editing one line is usually faster than typing the whole mapping from scratch.

Smart in-place updates

If a --single name matches an existing palette shade, PurgeTSS narrows the operation to an in-place JSON value edit. For example, pt semantic --single '#000' amazon500 edits amazon500 when the amazon palette already exists. The entry stays in its original position, and config.cjs is left untouched because the palette already maps to that key.

> purgetss semantic --single '#ff0000' amazon500 --alpha 80

::PurgeTSS:: amazon500 updated in app/assets/semantic.colors.json - palette amazon already references this key, config.cjs left unchanged.

That is the right behavior: you are editing one shade of an existing palette, not creating a new top-level color called amazon500.

Re-running replaces the family

Re-running on the same family replaces it. Before writing, PurgeTSS strips every prior key that belonged to that family, including the bare name and the 11 shade keys, then writes the new entries. Unrelated palettes and manually-defined entries such as textSecondaryColor stay untouched. Switching a family between palette and single forms does not leave stale keys behind.

Options

-s, --single: Generate a single purpose-based semantic color (requires explicit per-mode hex values).
-d, --dark <hex>: With --single, the dark-mode hex (defaults to the light value).
-a, --alpha <0-100>: With --single, wraps both modes in { color, alpha } per the Titanium spec. Range 0.0–100.0, integer or float.
-n, --name <name>: Specify the name (alternative to the positional argument).
-r, --random: In palette mode, use a random base color.
-o, --override: Place the Alloy mapping in theme.colors instead of theme.extend.colors. Ignored in Classic because no mapping is written.
-q, --quotes: Keep double quotes in the Alloy config.cjs. Ignored in Classic.
-l, --log: Preview the JSON without writing any files.

`color-module` command

This command creates purgetss.colors.js in the lib folder with all colors defined in config.cjs.

The destination is app/lib/purgetss.colors.js in Alloy or Resources/lib/purgetss.colors.js in Classic. A missing purgetss/config.cjs is created because that file is the command's color source. In Classic, the command creates no empty brand, font, image, Alloy, hook, or TSS scaffolding.

> purgetss color-module

# alias:
> purgetss cm

app/lib/purgetss.colors.js (Alloy) or Resources/lib/purgetss.colors.js (Classic)
module.exports = {
  harlequin: {
    '50': '#ecffe6',
    '100': '#d5fec9',
    '200': '#adfd99',
    '300': '#7bf85e',
    '400': '#44ed20',
    '500': '#2ed40e',
    '600': '#1daa06',
    '700': '#19810a',
    '800': '#18660e',
    '900': '#175611',
    default: '#44ed20'
  },
  primary: {
    '50': '#f4f6f7',
    '100': '#e3e7ea',
    '200': '#cad2d7',
    '300': '#a6b3ba',
    '400': '#7a8b96',
    '500': '#5f707b',
    '600': '#53606b',
    '700': '#464f58',
    '800': '#3e444c',
    '900': '#373c42',
    default: '#53606b'
  },
  lima: {
    '50': '#f0fee7',
    '100': '#dcfdca',
    '200': '#bbfb9b',
    '300': '#90f561',
    '400': '#65e92c',
    '500': '#48d012',
    '600': '#34a60a',
    '700': '#297e0d',
    '800': '#246410',
    '900': '#215413',
    default: '#65e92c'
  }
}

Use this when you want to reference configured colors from code instead of hardcoding values in multiple places.

In a Classic app, load that generated file with its path relative to Resources/:

Resources/app.js
const colors = require('lib/purgetss.colors')

const label = Ti.UI.createLabel({
  color: colors.primary['200']
})

`build` command

The build command generates utilities.tss from config.cjs. Run it after you change config.cjs.

> purgetss build

# alias:
> purgetss b

When purgetss runs (manually or via watch), it checks for changes in config.cjs and regenerates utilities.tss when needed.

`watch` command

The watch command runs PurgeTSS on each project compile. You do not need to run build manually after each change.

> purgetss watch

# alias:
> purgetss w

This works well with LiveView because it re-runs after changes such as adding or removing styles in views.

The command will install a task in the alloy.jmk file to enable this behavior:

task('pre:compile', function(event, logger) {
  require('child_process').execSync('purgetss', logger.warn('::PurgeTSS:: Auto-Purging ' + event.dir.project));
});

About watch

This feature works with standard Alloy projects compiled using ti build. It has not been tested with project types built using Webpack or Vue.

To deactivate it, use --off.

> purgetss watch --off

# alias:
> purgetss w -o

`module` command

The module command installs purgetss.ui.js in the lib folder.

The destination is selected automatically: app/lib/purgetss.ui.js in Alloy or Resources/lib/purgetss.ui.js in Classic. The generated CommonJS file is self-contained; a Classic app does not need PurgeTSS during compilation or at runtime.

> purgetss module

# alias:
> purgetss m

Load it in Classic with the path relative to Resources/:

Resources/app.js
const {
  createAnimation,
  Appearance,
  deviceInfo,
  saveComponent
} = require('lib/purgetss.ui')

The generated module exports:

AnimationProperties, the direct animation constructor export.
createAnimation(args), the behavior-equivalent factory recommended for Classic.
deviceInfo() and saveComponent() runtime utilities.
The Appearance singleton.

Its animation object exposes play, toggle, apply, open, close, draggable, undraggable, detectCollisions, sequence, swap, pulse, shake, snapTo, reorder, and transition.

To learn more

See The UI Module for the full API or Using purgetss.ui in Titanium Classic for native JavaScript examples.

`update` command

The update command upgrades PurgeTSS to the latest version.

> purgetss update

# alias:
> purgetss u

Runs npm install -g purgetss@latest.

`sudo-update` command

The sudo-update command is the same as update, but uses sudo to install npm modules when needed.

> purgetss sudo-update

# alias:
> purgetss su

Alloy and Classic compatibility​

Loading generated modules in Classic​

Setup commands​

Development commands​

Asset commands​

Utility commands​

Maintenance commands​

init command​

create command​

Arguments​

Options​

Requirements​

Installing dev dependencies​

List of commands used​

brand command​

The pieces​

Using custom logo paths​

Options​

Examples​

images command​

Options​

Examples​

install-dependencies command​

icon-library command​

Options and flags​

Available font classes​

Copying specific font vendors​

CommonJS module​

build-fonts command​

Options and flags​

shades command​

Arguments​

Options​

semantic command​

Palette mode (no --single)​

Single mode (--single)​

Customizing the class name​

Smart in-place updates​

Re-running replaces the family​

Options​

color-module command​

build command​

watch command​

module command​

update command​

sudo-update command​

Alloy and Classic compatibility

Loading generated modules in Classic

Setup commands

Development commands

Asset commands

Utility commands

Maintenance commands

`init` command

`create` command

Arguments

Options

Requirements

Installing dev dependencies

List of commands used

`brand` command

The pieces

Using custom logo paths

Options

Examples

`images` command

Options

Examples

`install-dependencies` command

`icon-library` command

Options and flags

Available font classes

Copying specific font vendors

CommonJS module

`build-fonts` command

Options and flags

`shades` command

Arguments

Options

`semantic` command

Palette mode (no `--single`)

Single mode (`--single`)

Customizing the class name

Smart in-place updates

Re-running replaces the family

Options

`color-module` command

`build` command

`watch` command

`module` command

`update` command

`sudo-update` command
